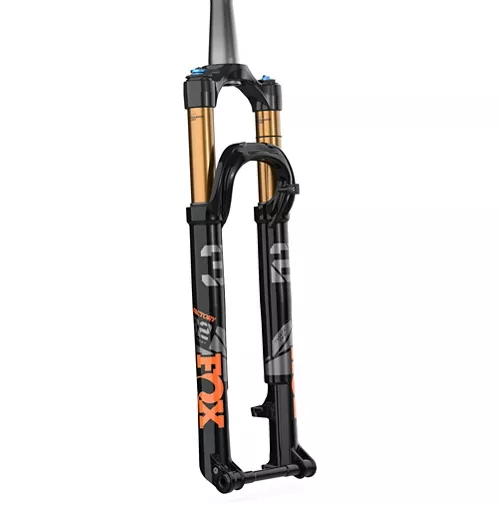

Fox Suspension 32 Float SC Factory Fit4 Remote Fork

Fox Suspension 32 Float SC Factory Fit4 Remote Fork

This mountain bike (MTB) suspension fork is specifically tailored for the rigours of cross country racing and features Fox Suspension’s prestigious Step Cast chassis. Its Step Cast design offers a pioneering lower leg shape that isn’t just for looks, its narrow stance and stepped design saves weight, decreases frontal area, and provides clearance for the spokes and brake rotor. Ready for the most demanding of cross country (XC) racing situations, this version is also kitted out with a lightweight Float EVOL air spring and a FIT4 2-position remote actuated damper (remote sold separately) for easy adjustment and fine-tuning to match your riding style. Part of the brand’s renowned Factory Series, this model comes complete with a genuine Kashima finish on its upper tubes for slippery smooth, ultra-durable performance as you race for the podium.

FIT4 2-Position Remote

In its fourth generation, Fox Suspension’s patented FIT4 closed cartridge system provides two on-the-fly compression damping positions (Open and Firm) to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

Lightweight Float Air Spring System

This model’s Float EVOL air spring automatically equalises the positive and negative air chambers for increased sensitivity and traction, regardless of the air pressure setting. Riders can fine-tune the characteristics of the positive air spring by using volume spacers.

Please note: A remote is sold separately for this product.

Features:

• Upper Tubes Finish: Genuine Kashima Coat
• Use: Cross Country (XC)
• Axle: Kabolt (multiple options available)
• Steerer Diameter: 1.5″ tapered
• Air Spring: Float EVOL
• Damper: FIT4 2-Position Remote with adjustment
• Remote Included: No, available separately
• Travel: 100mm
• Brake Rotor Compatibility: 160mm Direct Post Mount (27.5″ Option up to 180mm compatible; 29″ Option up to 203mm compatible)
• Starting Weight: 1387g

Technologies:

• Factory Series: “Factory” says it all – feature-packed and designed to exceed the demands of Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
• Adjustments: Two on-the-fly compression damping positions Open, Firm. Additional low-speed compression (Open mode adjust) 22 clicks. Low-speed rebound 10 clicks.
• Lightweight FIT4 Closed Cartridge System: Lightweight version of Fox Suspension’s patented FIT4 closed cartridge system. The weight-optimised design uses a detailed aluminium piston, intricate material removal and consolidated parts design to make it lighter.
• Narrow Chassis: The chassis is 10mm narrower than the typical 32 design.
• Shorter Upper Tube Length: The shorter upper tube length raises the floor of the magnesium lower leg, creating a hollow lower section and a lighter overall system.

Manufacturer’s Part Numbers:

• 910-21-041 Black 27.5″ KB100 100mm 44mm
• 910-21-040 Black 27.5″ KB110 100mm 44mm
• 910-21-038 Black 29″ KB110 100mm 44mm
• 910-21-036 Black 29″ KB110 100mm 51mm
• 910-21-035 Orange 29″ KB110 100mm 44mm
• 910-21-034 Orange 29″ KB110 100mm 51mm
• 910-21-039 Black 29″ KB100 100mm 44mm
• 910-21-037 Black 29″ KB100 100mm 51mm
