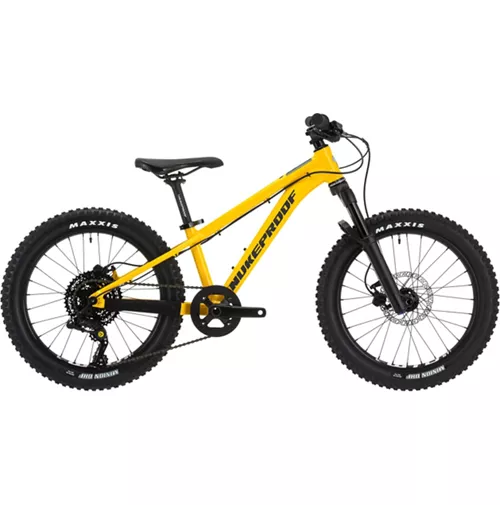

Nukeproof Cub-Scout 20 Race Mountain Bike (Box 4)

Nukeproof Cub-Scout 20 Race Mountain Bike

The Cub-Scout 20 Race from Nukeproof is a stable, fast and stylish kids mountain bike that is engineered and equipped to inspire confidence and elevate enjoyment when riding anywhere. It features an alloy frame that takes agile and comfortable geometry from Nukeproof’s adult bike range, this gives your little trail shredder the ideal stepping stone into the world of mountain bike (MTB) riding. It is equipped with Manitou Machete Junit suspension forks, a BOX FOUR 8-Speed drivetrain with a wide-ranging 11-42T cassette and kids-specific Clarkes Clout hydraulic disc brakes. It also rolls upon 20″ Nukeproof Neutron Boost wheels wrapped in Tubeless Ready Maxxis Minion DHF 2.4″ tyres.

Engineered for Young Off-Road Trail Riders

The Cub-Scout 20 Race is not just another kids bike: taking inspiration from Nukeproof’s award-winning Scout adult hardtail range, the Cub-Scout 20 has been designed from the ground-up as a proper mini-hardtail mountain bike. It has been designed to allow kids to learn the ropes of riding, inspire confidence on the trails and act as the perfect platform for progression. Developed and tested with the help of their own children, Nukeproof has created a class-leading lightweight kids bike range to inspire and nurture budding future World Cup or EWS winners.

The range of Cub-Scout Hardtails are available in 20”, 24” or 26” options. This means that there should be a bike to suit kids of all sizes from aged 5 and up. Each bike features a lightweight custom butted 6061 Alloy frameset with bang up to date long, low and slack kids specific geometry.

Kids Specific Components:

Proper fit and function of components is essential for kids bikes because adult components are not optimised for smaller people. To ensure that these bikes fit and function perfectly, Nukeproof took the time to test and develop their own or work with their partners to select the best kids-specific components they could find on the market.

Kid Specific parts include:

• Cub-Scout 20 Frame
• Manitou Machete Junit Expert Air Suspension forks with custom optimised damping for lighter riders
• Clarkes Clout Kids Specific Hydraulic disc brakes
• Nukeproof Urchin Saddle
• Nukeproof Urchin Handlebar (20” – 600mm/24” – 640mm/26” – 700mm)
• Nukeproof Urchin Grips
• 127mm Samox 2 piece Crank
• WTB STi 30 TCS Rims (Tubeless Ready)
• Large Volume 2.4” Maxxis Tyres to ensure grip and a smooth ride

Features:

• Frame: Nukeproof Cub-Scout 20, custom butted hydro-formed 6061 Alloy, threaded bottom bracket, 142mm Bolt-thru rear axle spacing
• Fork: Manitou Machete JUNIT 20” Expert Air, 80mm Travel, 1.5 Tapered Steerer, 40mm Offset, BOOST 15x110mm Bolt-thru Axle
• Front Wheel: Nukeproof Neutron 15x110mm hub on WTB STi30 20″ TCS Rim
• Rear Wheel: Nukeproof Neutron 12x142mm hub on WTB STi30 20″ TCS Rim
• Tyres: Front & Rear: Maxxis Minion DHF 20″ x 2.4”, TR
• Crankset: Samox TAF38J 2 Piece Crank 127mm, 32T, BCD 104
• Shifter: BOX FOUR 8-Speed
• Rear Derailleur: BOX FOUR Short Cage 8-Speed with Clutch
• Chain: BOX FOUR 8-Speed
• Cassette: Sunrace CSM680 8-Speed, 11-42T
• Brakes: Clarkes Clout Kids Specific Hydraulic Brakes
• Front Rotor: Clarkes, 160mm
• Rear Rotor: Clarkes, 160mm
• Handlebar: Nukeproof Urchin 600mm Wide, 15mm Rise, 31.8mm Clamp
• Stem: Nukeproof Neutron AM, 35mm, black
• Saddle: Nukeproof Urchin, Black
• Seatpost: Nukeproof Urchin, Black, 27.2mm, 300mm Long, 0 Offset
• Headset: Nukeproof Warhead, 44-44 IETS
• Grips: Nukeproof Urchin Single Clamp lock on, 115mm Long, Soft Compound
• Weight: 10.92kg

Key Information:

• Cub-Scout 20
• Material: Hydroformed 6061 Triple-Butted Aluminium
• Fork Travel: 80mm
• Axle to Crown: 385mm
• Fork Offset: 38mm
• Wheels Size: 20″
• Max Tyre Size: 2.6″
• Sizing: One Size
• Headtube: 44mm Semi-Integrated
• Headset: ZS44-28.6 – T2 / EX44/40 – B5 (For Tapered Steerer fork)
• Seatpost: 27.2mm
• Seat Clamp: 31.8mm
• BB: Threaded 68mm BSA
• Rear Hub: 142x12mm
• Front Hub: 110x15mm
• Rear Axle: M12*1.5 Thread x168mm (Thread Length 17mm)
• Front Axle: Included with fork
• Chain Guide: ISCG05
• Brake Mount: 160mm Direct Post
• Protection: Kevlar Chainstay Protector

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
