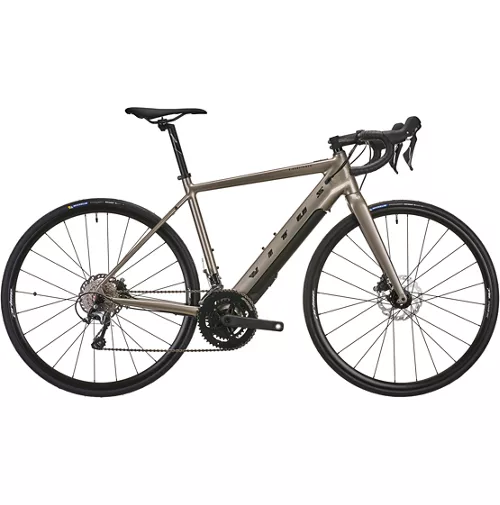

Vitus E-Substance Alloy Road E-Bike (Tiagra)

Vitus E-Substance Aluminium E Bike 2X Tiagra (Fazua)

The Vitus E-Substance 2X Tiagra is a versatile electric bike (E-Bike) that is ideal for off-road adventures, long-distance touring and gravel trail riding. Vitus has equipped it with a Fazua Ride 50 Trail electric motor drive that offers a pedal-assisted push when needed. It has an alloy frame and carbon fork fitted with a Shimano Tiagra 2×10-Speed groupset and Tiagra hydraulic disc brakes. This E-Bike rolls upon Tubeless Ready Prime Stagiaire wheels wrapped in high-grip Michelin Power Road TLR tyres.

Strong, Reliable and Versatile Adventure E-Bike

The Vitus E-Substance loads your ride with freedom and choice. It expands your world, opening up new possibilities to ride and explore where otherwise you might not have looked. Unshackled from the same old routes, each ride reveals new ways ahead, like a fresh map – that bridleway to who-knows-where, the gravel track through the woods or the rougher shortcut that you know is quicker but that other bikes couldn’t handle.

See, in a world obsessed with pace, sometimes we need to focus on the place, the journey and the fun that comes from a bike with the capability to seek out adventures where others wouldn’t.

Fazua Ride 50 Trail Electric Motor Drive

Whether embarking on a bikepacking adventure or simply staying light for a mixed-terrain local loop, the E-Substance is capable of adapting to suit your ride. At its core, a robust aluminium frame and carbon fork are tuned for versatility, aided by the compact Fazua electric drive system with three assistance levels up to 250 watts. The latest top-tube controller lets you easily manage performance and with everything cleanly integrated, the Substance retains its modern look. Paired with Shimano’s reliable Tiagra 2X drivetrain, the frame is also compatible with 700c or 650b wheels, so you can fine-tune the setup to best fit where you are riding. For tough rides where water, food and spares might be hard to come by, rack mounts enable you to load up with whatever’s required to reach the next supply point.

This isn’t simply about the same cliches of getting off the beaten track or going in search of the road less travelled, because the E-Substance is more than a gravel or adventure bike. Retaining the essence of what the Substance stands for, the addition of the electric drive system simply opens up the possibility for you to do more. It’s a bike that gives you options. The Substance family empowers a new mindset, one that entices you to break away from routine and to ride where you want to ride, unrestricted.

Key Features:

• Fazua evation powered adventure road bike – drop handlebar explorer with electric assistance
• Frame Material: 6061 T-6 Aluminium
• Intended Use: E-Bikes – Adventure
• Double Butted aluminium frame with internal cable routing
• Shimano Tiagra 2 x 10 speed groupset
• Fazua drive system with 3 Assistance levels assisting up to 25 km/h
• Mid-drive motor, 250 Watt Max – 55 Nm
• 252 Wh battery
• Approx 2hr charge time – UK Charger Plug

Please NoteThis E-Bike (electric bike) has a max assisted speed of 25 km/h / 15.5 mph

Features:

• Frame: E-Substance Aluminium – Fazua, 6061-T6 Aluminium, Fazua evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifications: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
• Fork: E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
• Headset: ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
• Handlebar: FSA Omega Compact Handlebars, 6061 Aluminium, 74mm Reach, 118mm Drop, 4 Degree Flare, S:400mm M:400mm L:420mm XL:440mm
• Stem: FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
• Grip(Tape): Vitus, EVA Cork
• Wheelset: Prime Stagiaire Disc Alloy, 650b, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub
• F/rim: Prime Stagiaire Disc Alloy, 650b, Tubeless Ready
• R/rim: Prime Stagiaire Disc Alloy, 650b, Tubeless Ready
• F/hub: Prime, 12x100mm, Centre Lock
• R/hub: Prime, 142x12mm, Centre Lock, HG Freehub
• F/tyre: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
• R/tyre: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
• Chain: KMC e10T, 10 Speed, E-Bike Specific
• Crankset: FSA CK 746, 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
• F/brake Set: Shimano Tiagra R4700 Hydraulic Disc, ST-4720-R & BR-4770-F, Flat Mount
• R/brake Set: Shimano Tiagra R4700 Hydraulic Disc, ST-4720-L & BR-4770-R, Flat Mount
• Rotors: Shimano SM-RT70, Front: 160mm, Rear: 160mm
• F/derailleur: Shimano Tiagra R4700, FD-R4700, Braze-On, 2 x 10 Speed
• R/derailleur: Shimano Tiagra R4700, RD-R4700, 10 Speed
• L/shifter: Shimano Tiagra R4700, ST-4720-L, 2 x 10 Speed
• R/shifter: Shimano Tiagra R4700, ST-4720-R, 10 Speed
• Freewheel: Sunrace CS-RX0, 10 Speed, 11-32T
• Saddle: Vitus, Steel Rail
• Seat Post: FSA Gossamer, Aluminium, 27.2mm x 350mm
• Seat Screw: Aluminium 31.8mm, Stainless Steel Bolt
• Battery: Fazua Energy 250X, Frame Integrated, 252Wh – 36v / 7ah
• Assist Switch: Fazua Remote fX, Frame Integrated
• Drive Unit: Fazua Ride 50 Trail, 250W, Mid Position Motor
• Weight: Medium: 15.4kg

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
